LABEL MACHINE LEWIS 160-20

Electronic and pneumatic digital labelling machine Lewis 160/20.
The machine has been refurbished and completely modified; it is fast, silent, reliable and easy to use: it allows the worker to easily set the numbers of stitches using a 5 position selector.
It can be set according to the different type of fabric and process.
When dealing with ties, it’s possible to quickly replace the plate to change from label application to loop application.
When dealing with scarves, there’s only a plate and a stopper presser foot in rubber to work with delicate fabrics.

MAIN FEATURES:

High quality tie manufacturing
High productivity
Easy to use
Easy and quick choice of the number of stitches using a selector
Easy and quick plate replacement
Possibility to set the type of work: round and rectangular for scarves; L-type for ties
Certified machine in accordance with the current European legislation
High quality electro-mechanical and pneumatic components

GENERAL DATA
MACHINE SIZE	lunghezza cm.105 larghezza cm.97 altezza cm.164
TOTAL OCCUPIED AREA	cm.165XCM.120
MACHINE WEIGHT	kg.90
LINE VOLTAGE	230Vac 50/60
INSTALLED POWER	0.5 KVA (indicativa)
COMPRESSED AIR PRESSURE	5,5/6 atm
COMPRESSED AIR CONSUMPTION	5 l/min
MAIN COMPONENTS	Sewing machine Lewis; engine and control unit Efka; pneumatic SMC
DECLARATION OF CONFORMITY	2006/42CE DIRECTIVE OF MACHINE CONFORMITY EN 60204-1 MACHINE SECURITY

Technical features

The electronic control unit of the labelling machine allows to:

run the digital engine
set the sewing sequences
control the electropneumatic and electromechanical components

High quality tie manufacturing

Thanks to many years of experience, all the range of machines manufactured by Frigerio e Corazza aim to obtain the highest quality standards requested.

High productivity and easy use

Easy to use thanks to the simple setting of the type of work needed.

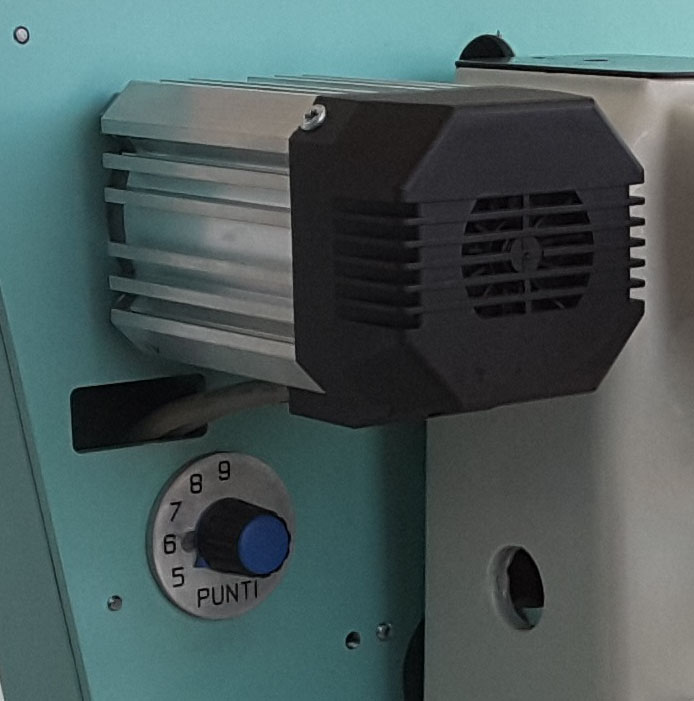

Choice of the number of stitches

The number of stitches can be decided using the front selector.
The handle has got 5 options and it allows to change easily and quickly the number of stitches needed.

Plate replacement

According to the type of work requested, the plate can be replaced just using the two front screws.
It doesn’t need further adjustments.

Type of work

At your choice, the machine can be equipped with different types of work table:


Round: original Lewis model	Large and rectangular: for scarves	L-type: for ties

Certifications and components

The labelling machine has been certified in accordance with the current European law. All the components reflect the high quality and reliability of the machine.
