NATY is a professional ironing board, it has a strong and rectangular shape equipped with suction pump and electrically heated, adjustable in height and tiltable.
Equipped with:
MAIN FEATURES:
| GENERAL INFORMATION | |

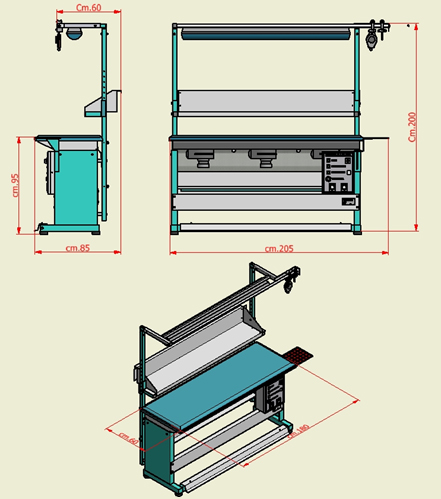

| MACHINE SIZE | cm 205 (L), cm 85 (W), cm 200 (H) |
| MACHINE WEIGHT | kg 350 |
| LINE VOLTAGE | 220V 50Hz |
| INSTALLED POWER | 2KVA (approximate) |
| ELECTRIC PARTS | Mitsubishi, Schneider electric Cabur |
| CERTIFICATION | 2006/42CE,2006/95CE,2004/108/CE, EN292-2, EN 60204-1 |
The worktop has been developed to meet the needs of scarf and tie manufacturers. The worktop length is bigger than the usual ironing boards on the market.
To improve the performance, the heated area equipped with the suction system, can be adjusted according to the fabric/product to be ironed.
According to the height of the user, the worktop is adjustable in height using the 4 screws on the side of the frame. The minimum height is 95 cm, the maximum is 105 cm.
To help the user ironing big size scarves or ties, it’s possible to tilt the worktop protecting the physical health of the operator.
The lighting system consists of two light sources: the first one is parallel to the upper rail, the second one is placed under the big shelf.
The combination of these two light sources avoid any possible shaded area on the worktop, improving the product vision during the ironing process.
The presence of 3 suction pumps, evenly distributed, allows a homogenous suction along the worktop.

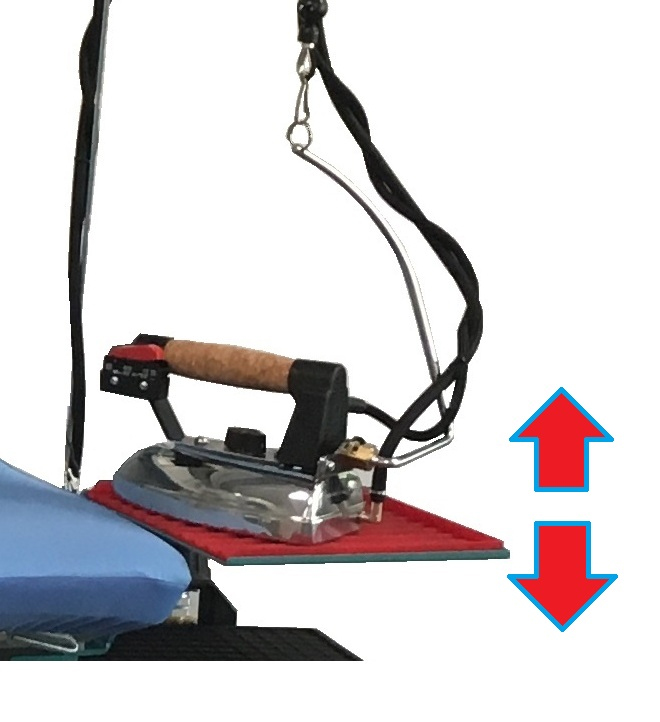

The small shelf, to place the iron during the ironing process, is made of silicone. Furthermore, it is adjustable in height together with the worktop height.
The upper rail, where the light is placed, can be adjusted in height and depth.
The big shelf is adjustable in height according to the operator needs.
The balancing system, where the iron hangs, reduces the operator fatigue. Moreover, it helps the user to place the iron on the silicone tray quickly during the working changeovers.

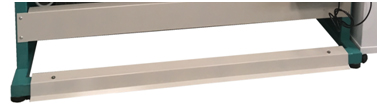

The suction system can be activated using the pedal placed along all the length of the ironing board NATY.
There are two power sockets of 230-volt monophase, in accordance with the current law. They are necessary to connect the steam generator and other accessories.
2006/42CE DIRECTIVE OF MACHINE CONFORMITY
REFERENCE TO HARMONISED STANDARDS
EN292-2 SAFETY OF MACHINERY
EN 60204-1 MACHINE SAFETY – ELECTRICAL EQUIPMENT OF MACHINES
The ironing board NATY has been certified in accordance with the current European law. All the components reflect the high quality and reliability of the machine.
